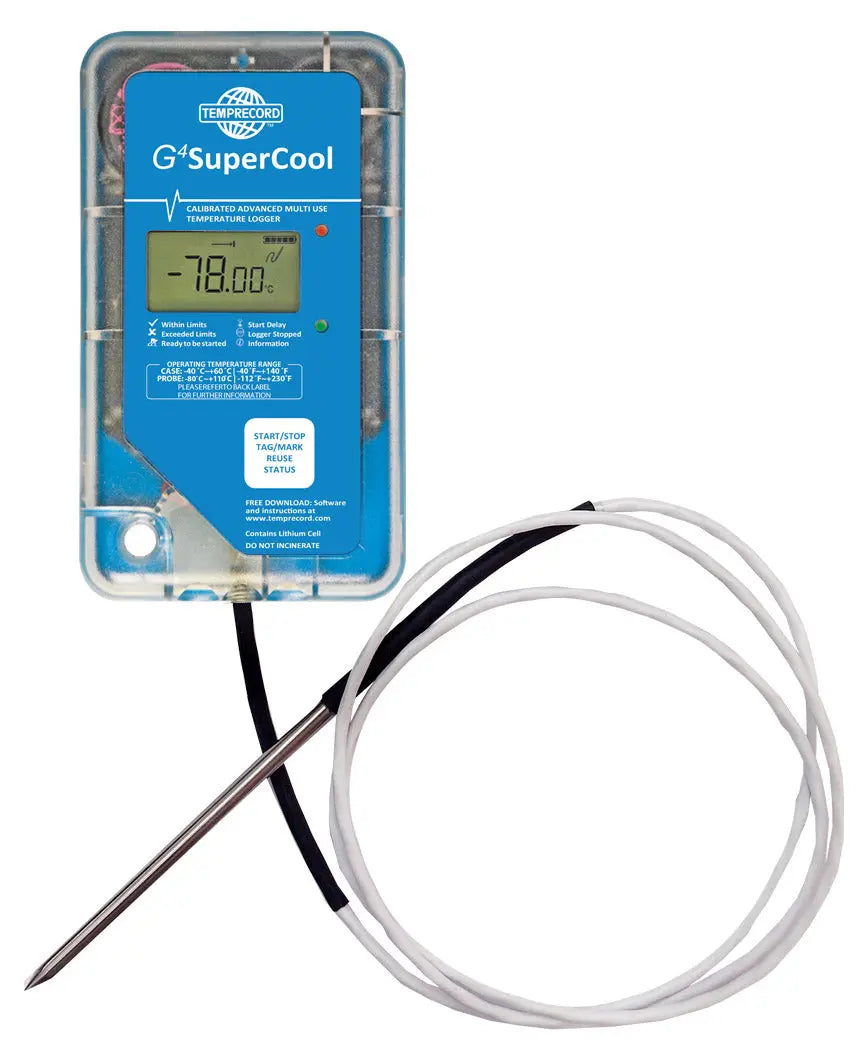

G4 Supercool straight probe temperature data logger
This logger requires a USB Reader Interface to program and download data in the free TRW 6.3 software.
Proven accurate and reliable Temprecord performance, when product integrity is critical!
NB! Please keep logger case out of the environment if temperature is outside of the temperature range: -50 ˚C to +75 ˚C or -58 ˚F to +167 ˚F
Battery type: Lithium Thionyl Chloride (3.6V)
Case dimensions: L 129mm x W 73.5mm x 14mm or 51/8 x 27/8 x 5/8 inches
Case protection: IP67 or NEMA 6. Fully welded FDA approved food grade casing
Recording duration: 2.2 hrs up to 2 years
Sample capacity: Approx. 7,935 samples minimum
Sample period: Programmable between 1 second and 18 hours
Temperature range with low temperature probe: -80 ˚C to +110 ˚C or -112 ˚F to +230 ˚F
Weight: 104g or 3.6oz
TRW 6.3 Software must be used to operate all G4 display data loggers:
• Download software from www.temprecord.com
• Temprecord USB Reader interface is required
• Compatible with Windows 7, 8 or 10 (unfortunately software not available for Apple Mac)
12 months on data logger and 2 years on battery from date of purchase. Warranty void if traces of water found within logger case.
Applications for the G4 Supercool straight probe temperature data logger include monitoring of critical temperature-sensitive products during:
Production / processing,
For products such as:
Calibrated and corrected at 3-Points to ISO / IEC 17025 Calibration Laboratory Standard. Traceable Calibration Certificate is included and can be downloaded online by inputting the serial number on the back label of the logger. This link will redirect to another website to download the G4 Supercool straight probe temperature data logger calibration certificate. Calibration Certificate Search
For more information download the PDF product brochure - G4-Supercool-straight-probe-temperature-data-logger.pdf
Contact Temprecord International Ltd for any questions or more information. We reply within 24 hours Monday to Friday (New Zealand standard time GMT +12) Alternatively please view our distributors page for a knowledgeable Temprecord distributor in your country
